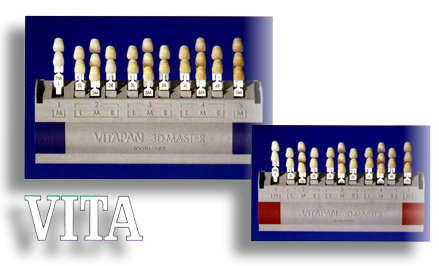

| The Vitapan 3D-Master shade system provides a
systematic arrangement of virtually all existing natural tooth shades
and integrates them into one easy-to-use shade guide. Thereby inproving
colour communication between dentist and dental technician. |
 |
 |

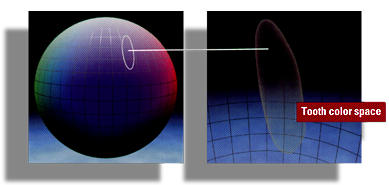

Colours can be clearly defined scientifically through a three dimensional
model based on lightness, chroma and hue.
On the left: Tooth shades are situated in this segment.
This space encompasses all natural tooth colours.
|
| Until now tooth colours have lacked organized distribution in the
tooth colour space, with either voids in colour coverage or heavy
concentrations of several colours. |

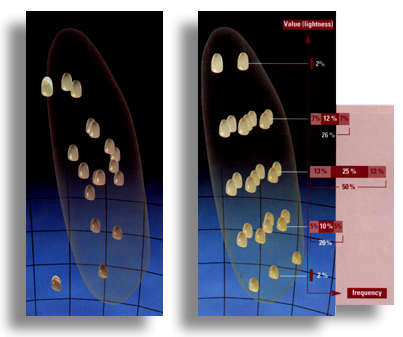

The Vitapan 3D-Master shade system has been devised so that
the most frequently occuring natural tooth shadesare concentrated
in the centre of the colour space. |
|
Vitapan 3D-Master thereby offers complete and systematic
coverage of tooth colour, easy handling during colour selection
by proceeding in systematic steps and provides a high degree of
confidence with regard to colour determination colour communication
and colour reproduction.
|
|
1. Select the value(lightness)from the five value groupswhich
is closest to the tooth being compared.
Pull out the medium shade sample (M) from this group.
|
 |
| 2. Select the shade sample of the M-group which
is closest to the tooth being compared. |
 |
|
3. Check wether the natural tooth is more yellowish (L)
or more reddish (R) than the shade sample of tke M-group selected
in part 2.
Select the best matching shade sample.
|
 |
All data is then entered on the easy-to-use Colour Communication
Form.
The plastic parts of the Vitapan 3D-Master
Tooth\Colour guide consist of high-quality, temperature-resistant, easy-care
material. The complete shade guide can be sterilised in the autoclave
up to a maximum temperature of 140 degrees C (284 degrees F) and are also
suitable for surface disinfection.
Note: Vitapan
products are only available to qualified dental practitioners.
Dental work may only
be carried out by members of the dental profession.
|
